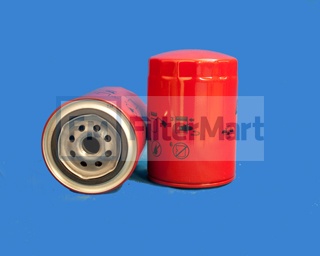

Filtermart™ SPIN-ON ELEMENT

Add To Cart

FMC #28-0086

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/General Purpose Filters/Miscellaneous

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	20.00 NOMNAL
  Beta Rating:	N/A
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	25 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.69 IN (93.73 MM)
  (B) Outer Diameter, Bottom:	3.69 IN (93.73 MM)
  (E) Length:	5.38 IN (0.00 MM)
  (F) Thread:	3/4-16

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	PLASTISOL
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	PAPER
  Filter Area:	SQ.IN.
  Plating:	ELECTROTIN PLATED
  Outer Jacket:	YES - METAL
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	1.50 LB (0.68 KG)
