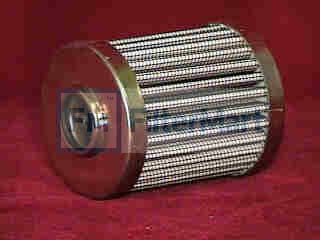

Filtermart™ PLEATED MICROGLASS ELEMENT

Add To Cart

FMC #28-0204

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/General Purpose Filters/Miscellaneous

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	5.00
  Beta Rating:	200
  Collapse Pressure Rating:	350 PSID
  Maximum Temperature:	212 F.
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	2.18 IN (55.37 MM)
  (B) Outer Diameter, Bottom:	2.18 IN (55.37 MM)
  (C) Inner Diameter, Top:	0.77 IN (19.56 MM)
  (E) Length:	2.62 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	MICROGLASS
  Filter Area:	59.66 SQ.IN.
  Plating:	ZINC PLATED
  Outer Jacket:	YES
  Configuration:

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	5.00 LB (2.27 KG)
