This product usually ships in 24-48 hours
All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.
*Special Pricing – (limited qty), additional discounts do not apply

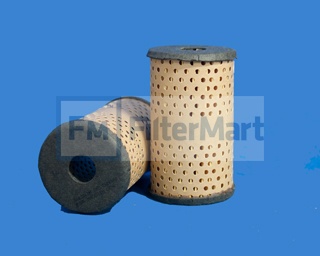

Industrial Filters/General Purpose Filters/Miscellaneous
Micron Rating: | 25.00 NOMINAL |
Beta Rating: | N/A |
Collapse Pressure Rating: | 75 PSID |
Maximum Temperature: | 225 F |
Direction of Flow: | OUTSIDE->IN |
Recommended Changeout Differential Pressure: | 25 PSID |
(A) Outer Diameter, Top: | 2.35 IN (59.69 MM) |
(B) Outer Diameter, Bottom: | 2.35 IN (59.69 MM) |
(C) Inner Diameter, Top: | 0.70 IN (17.78 MM) |
(D) Inner Diameter, Bottom: | 0.70 IN (17.78 MM) |
(E) Length: | 3.91 IN (17.78 MM) |
(F) Thread: | NONE |
Handle: | NONE |
Seal Material: | BUNA-N |
Type of Adhesive: | PLASTISOL |
Type of Endcap: | PLATED STEEL |
Center Tube: | PLATED STEEL |
Type of Media: | PAPER |
Filter Area: | SQ.IN. |
Plating: | NONE |
Outer Jacket: | YES - PAPER |
Configuration: | DOUBLE OPEN END |
Number per Carton: | 1 |
Carton Weight: | 2.00 LB (0.91 KG) |
