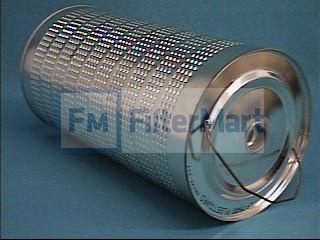

Filtermart™ DEPTH-PACK BY-PASS LUBE

Add To Cart

FMC #28-0384

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/General Purpose Filters/Miscellaneous

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	5.00
  Beta Rating:
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	7.72 IN (196.09 MM)
  (B) Outer Diameter, Bottom:	7.72 IN (196.09 MM)
  (C) Inner Diameter, Top:	0.90 IN (22.86 MM)
  (E) Length:	15.06 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	NONE
  Type of Adhesive:	POLYVINYLCHLORIDE
  Type of Endcap:	CARBON STEEL
  Center Tube:	CARBON STEEL
  Type of Media:	COTTON
  Filter Area:	SQ.IN.
  Plating:	NONE
  Outer Jacket:	YES
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	31.00 LB (14.06 KG)
