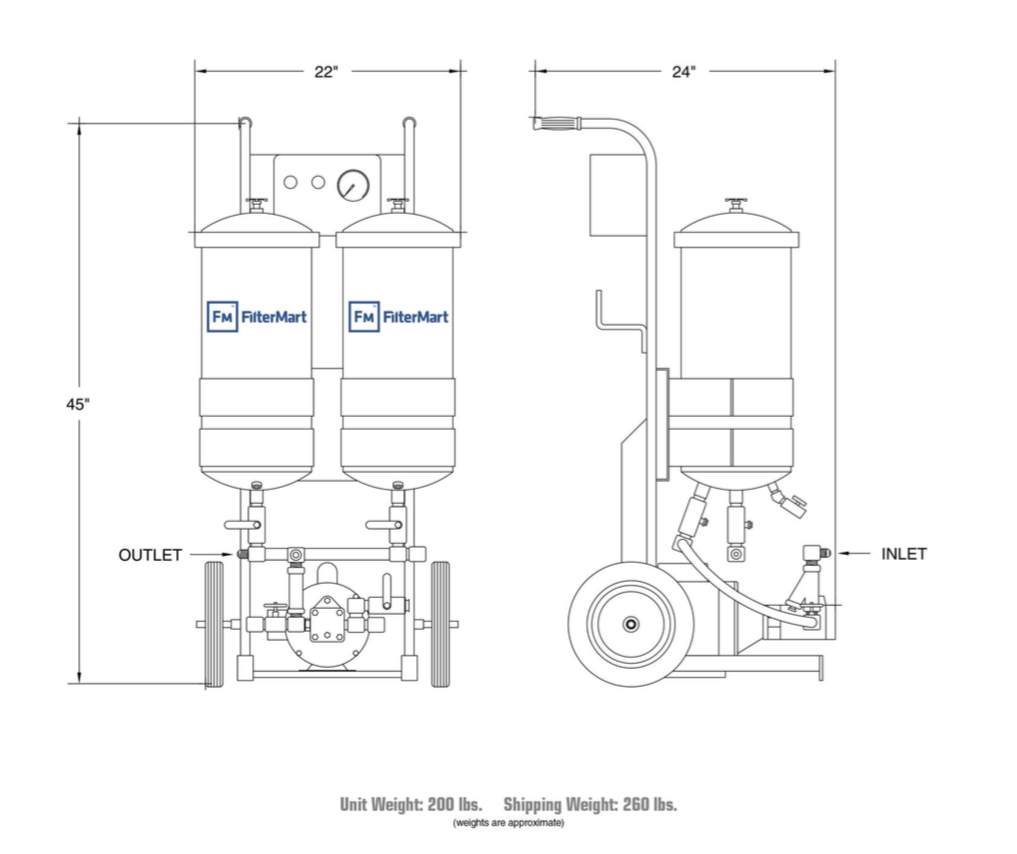

51-0015 Portable Filtration System

High Performance Filtration for Today's Industry

360 GPH

Specifications

  • 3/4 HP TEFC Heavy Duty Motor with Thermal Overload Protection
  • 8 GPM positive displacement gear pump with internal relief valve
  • Two (2) polyurethane powder baked 51-0001 element housings
  • Wired 110 Volt, 1 phase with all electrical components mounted in a NEMA 4 enclosure
  • Automatic high / low pressure shutdown system for unattended operation
  • 0-100 PSI glycerin filled gauge for monitoring system pressure
  • Plumbed with 3/4" fittings and 1" stailness steel tubing
  • 3/4" inlet and 3/4" outlet with ball valves provided to isolate unit
  • Fifteen (15) feet of heavy duty 12/3 power cord
  • Manufactured with 3-way ball valves for fluid transfer system to allow for adding makeup oil
  • Suction-Wye Strainer to protect pump from large debris
  • Heavy duty 10" pneumatic tires
  • Filtration capacity of 6.5 GPM and fluid transfer capacity of 8 GPM

Applications

Hydrolic Oil • Compressor Oil • Quench Oil • EDM Oil • Lubricating Oil • Insulating Oil • Turbine Oil • Gear Oil • Water Glycol Fluids • Water Based Coolants
