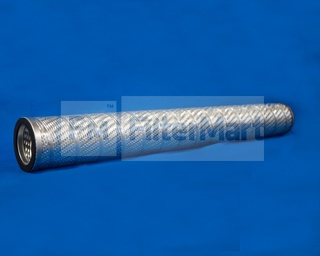

Filtermart™ PLEATED SYNTHETIC ELEMENT

Add To Cart

FMC #04-0244

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*4 per carton

Industrial Filters/Liquid Filters/Pleated Synthetic/Polyester/Polypropylene Water Filtration

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	0.50
  Beta Rating:	5000
  Collapse Pressure Rating:	75 PSI
  Maximum Temperature:	250 F
  Direction of Flow:	OUSIDE-IN
  Recommended Changeout Differential Pressure:	15 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	4.50 IN (114.30 MM)
  (B) Outer Diameter, Bottom:	4.50 IN (114.30 MM)
  (C) Inner Diameter, Top:	3.10 IN (78.74 MM)
  (D) Inner Diameter, Bottom:	3.10 IN (78.74 MM)
  (E) Length:	36.00 IN (78.74 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	PLASTISOL
  Type of Endcap:	CARBON STEEL
  Center Tube:	CARBON STEEL
  Type of Media:	SYNTHETIC
  Filter Area:	24 SQ.FT.
  Plating:	N/A
  Outer Jacket:	YES
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	4
  Carton Weight:	21.00 LB (9.53 KG)
