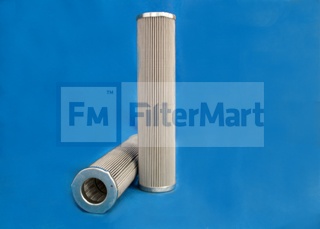

Filtermart™ PLEATED MICROGLASS ELEMENT

Add To Cart

FMC #05-0597

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Liquid Filters/Pleated Synthetic/Microglass

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	6.00 ABSOLUTE
  Beta Rating:	B10=200
  Collapse Pressure Rating:	450 PSID
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	50 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.33 IN (84.58 MM)
  (B) Outer Diameter, Bottom:	3.33 IN (84.58 MM)
  (C) Inner Diameter, Top:	1.86 IN (47.24 MM)
  (E) Length:	14.69 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	NONE
  Type of Adhesive:	EPOXY
  Type of Endcap:	PLATED STEEL
  Center Tube:	PLATED STEEL
  Type of Media:	MICROGLASS
  Filter Area:	SQ.IN.
  Plating:	ZINC PLATED
  Outer Jacket:	YES
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	3.00 LB (1.36 KG)
