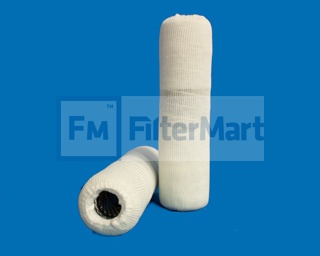

Filtermart™ DEPTH TYPE ELEMENT

Add To Cart

FMC #10-0766

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*32 per carton

Industrial Filters/Depth Filters/Natural or Synthetic Fiber

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	25.00
  Beta Rating:	N/A
  Collapse Pressure Rating:	150 PSID
  Maximum Temperature:	275 F
  Direction of Flow:	INSIDE->OUT
  Recommended Changeout Differential Pressure:	25 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	2.50 IN (63.50 MM)
  (B) Outer Diameter, Bottom:	2.50 IN (63.50 MM)
  (C) Inner Diameter, Top:	1.25 IN (31.75 MM)
  (D) Inner Diameter, Bottom:	1.25 IN (31.75 MM)
  (E) Length:	9.75 IN (31.75 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	NONE
  Type of Adhesive:	NONE
  Type of Endcap:	NONE
  Center Tube:	CARBON STEEL
  Type of Media:	COTTON/POLY
  Filter Area:	SQ.IN.
  Plating:	NONE
  Outer Jacket:	NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	32
  Carton Weight:	18.00 LB (8.16 KG)
