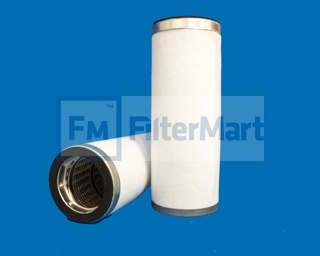

Filtermart™ DEPTH TYPE ELEMENT

Add To Cart

FMC #10-0890

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*4 per carton

Industrial Filters/Depth Filters/Natural or Synthetic Fiber

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	0.30 ABSOLUTE
  Beta Rating:
  Collapse Pressure Rating:
  Maximum Temperature:	275 F
  Direction of Flow:	INSIDE->OUT
  Recommended Changeout Differential Pressure:	0 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	4.50 IN (114.30 MM)
  (B) Outer Diameter, Bottom:	4.50 IN (114.30 MM)
  (C) Inner Diameter, Top:	3.25 IN (82.55 MM)
  (E) Length:	12.00 IN (0.00 MM)
  (F) Thread:	N/A

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA
  Type of Adhesive:	MECHANICALLY
  Type of Endcap:	TIN PLATED STEEL
  Center Tube:	TIN PLATED STEEL
  Type of Media:	MICROGLASS
  Filter Area:	N/A
  Plating:	ELECTRO TIN
  Outer Jacket:	YES - POLYESTER
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	4
  Carton Weight:	1.50 LB (0.68 KG)
