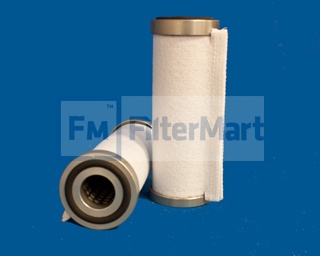

Filtermart™ COMPRESSED AIR ELEMENT

Add To Cart

FMC #18-0252

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Coalescer Filters/Air/Paper-Particulate

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	0.60
  Beta Rating:
  Collapse Pressure Rating:
  Maximum Temperature:	350 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	15 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	2.31 IN (58.67 MM)
  (B) Outer Diameter, Bottom:	2.31 IN (58.67 MM)
  (C) Inner Diameter, Top:	1.00 IN (25.40 MM)
  (E) Length:	6.00 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	EPOXY
  Type of Endcap:	ALUMINUM
  Center Tube:	GALVANIZED STEEL
  Type of Media:	BOROSILICATE
  Filter Area:	SQ.IN.
  Plating:
  Outer Jacket:	NONE
  Configuration:	SINGLE OPEN END W/BH

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	2.00 LB (0.91 KG)
