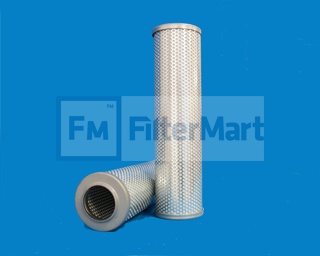

Filtermart™ AIR - HIGH TEMP. ELEMENT

Add To Cart

FMC #20-0005

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/Coalescer Filters/Air/Borosilicate-Particulate High Temperature

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	1.00 ABSOLUTE
  Beta Rating:	N/A
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	450 F
  Direction of Flow:	INSIDE-->OU
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	3.78 IN (96.01 MM)
  (B) Outer Diameter, Bottom:	3.78 IN (96.01 MM)
  (C) Inner Diameter, Top:	2.21 IN (56.13 MM)
  (E) Length:	14.00 IN (0.00 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	VITON
  Type of Adhesive:	EPOXY
  Type of Endcap:	CARBON STEEL
  Center Tube:	CARBON STEEL
  Type of Media:	MICROGLASS
  Filter Area:	SQ.IN.
  Plating:	N/A
  Outer Jacket:	YES - PERFORATED
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	3.00 LB (1.36 KG)
