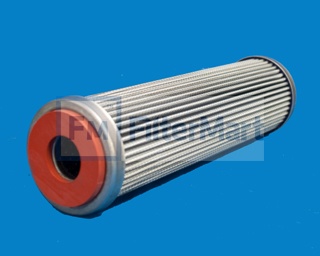

Filtermart™ AIR - HIGH TEMP. ELEMENT - STAINLESS

Add To Cart

FMC #20-0009

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*6 per carton

Industrial Filters/Coalescer Filters/Air/Borosilicate-Particulate High Temperature

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	0.90 ABSOLUTE
  Beta Rating:	N/A
  Collapse Pressure Rating:	75 PSID
  Maximum Temperature:	450 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	2.75 IN (69.85 MM)
  (B) Outer Diameter, Bottom:	2.75 IN (69.85 MM)
  (C) Inner Diameter, Top:	0.97 IN (24.64 MM)
  (D) Inner Diameter, Bottom:	0.97 IN (24.64 MM)
  (E) Length:	9.81 IN (24.64 MM)
  (F) Thread:	NONE

• Physical Specifications

  Handle:	NONE
  Seal Material:	SILICON
  Type of Adhesive:	EPOXY
  Type of Endcap:	STAINLESS STEEL
  Center Tube:	STAINLESS STEEL
  Type of Media:	GLASS
  Filter Area:	SQ.IN.
  Plating:	NONE
  Outer Jacket:	NONE
  Configuration:	DOUBLE OPEN END

• Packaging Specifications

  Number per Carton:	6
  Carton Weight:	5.00 LB (2.27 KG)
