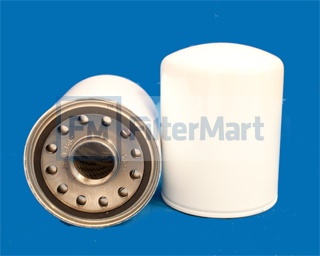

Filtermart™ COMPRESSOR SPIN-ON ELEMENT

Add To Cart

FMC #25-0307

Price: TBD

This product usually ships in 24-48 hours

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

*6 per carton

Industrial Filters/Spin-On Filters/Paper. Microglass, Wire, Water Removal

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	25.00 NOMINAL
  Beta Rating:	B25 = 200
  Collapse Pressure Rating:	80 PSI
  Maximum Temperature:	225 F
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	25 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	5.00 IN (127.00 MM)
  (B) Outer Diameter, Bottom:	5.00 IN (127.00 MM)
  (E) Length:	6.50 IN (0.00 MM)
  (F) Thread:	1 1/4"-11 BSP

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:	EPOXY
  Type of Endcap:	NONE
  Center Tube:	STEEL
  Type of Media:	MICROGLASS
  Filter Area:	3.77 SQ.FT.
  Plating:	ELECTROTIN PLATED
  Outer Jacket:	YES - METAL
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	6
  Carton Weight:	18.00 LB (8.16 KG)
