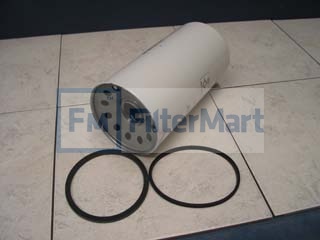

Filtermart™ ORIGINAL STAUFF SPIN-ON ELEMENT

Add To Cart

FMC #28-2517

Price: TBD

All FilterMart replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Industrial Filters/General Purpose Filters/Miscellaneous

• Product DetailsDownload Spec Sheet
• Performance Data

  Micron Rating:	10.00
  Beta Rating:
  Collapse Pressure Rating:
  Maximum Temperature:
  Direction of Flow:	OUTSIDE->IN
  Recommended Changeout Differential Pressure:	20 PSID

• Dimensional Specifications

  (A) Outer Diameter, Top:	5.08 IN (129.03 MM)
  (B) Outer Diameter, Bottom:	5.08 IN (129.03 MM)
  (E) Length:	10.71 IN (0.00 MM)
  (F) Thread:	1 1/2-16 UN2B

• Physical Specifications

  Handle:	NONE
  Seal Material:	BUNA-N
  Type of Adhesive:
  Type of Endcap:	PLATED STEEL
  Center Tube:	STEEL
  Type of Media:	PAPER
  Filter Area:	SQ.IN.
  Plating:
  Outer Jacket:	YES
  Configuration:	SINGLE OPEN END

• Packaging Specifications

  Number per Carton:	1
  Carton Weight:	3.00 LB (1.36 KG)
